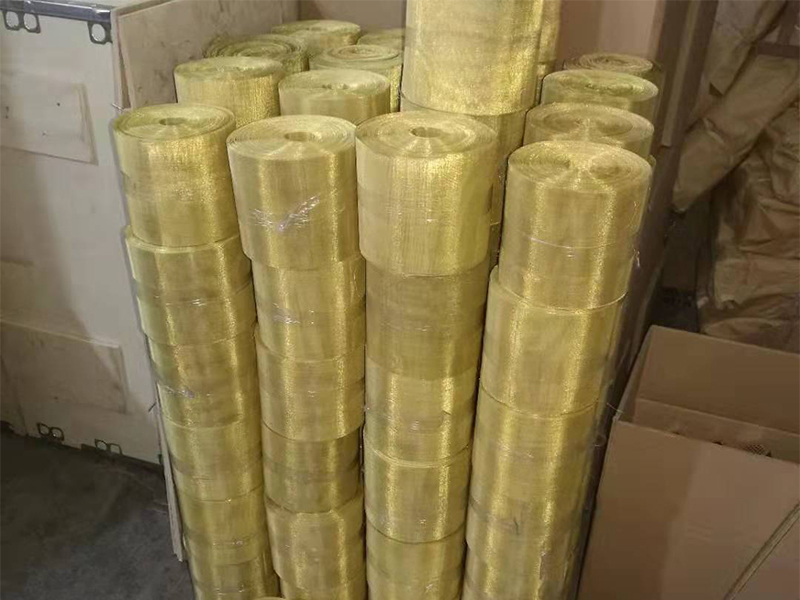

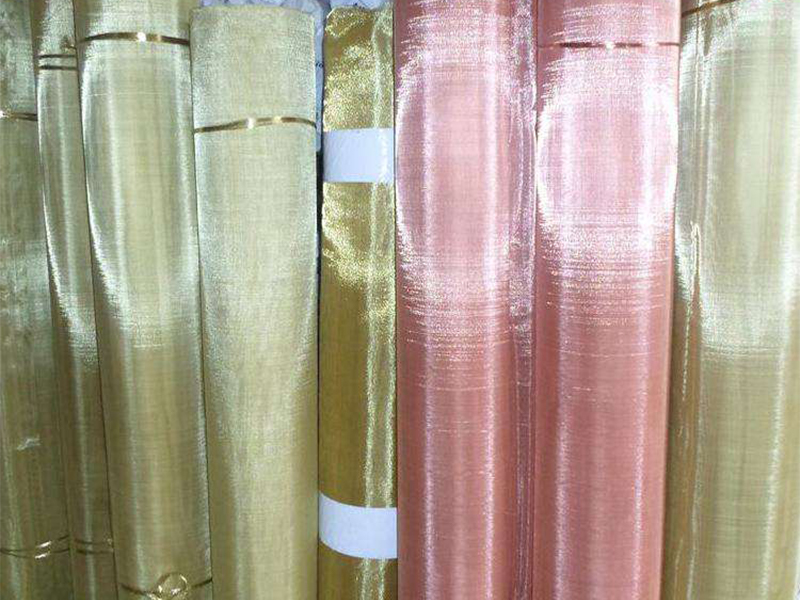

Copper Woven Wire Mesh

Copper wire mesh can be used as the sheilding screen in the cable circuits,laboratories and computer rooms. Widely used in the power sector, aerospace, information industry and military for RFl and EMI shielding. Can be used as the faraday cage. can be installed onto buildings to insulate noise. can be made to filter discs for liquid, gas and solid filtering.

Scroll down to view more product specifications.

Inquire Now >

Product Introduction

Material	red copper wire,brass wire,Phosphor Copper Wire
Feature	non-magnetic, wear-resistant, good sound insulation, and filtered electron beam
Specification	5 mesh / inch-400mesh / inch
Weaving	Plain weave,Twill weave
Usage	wall sound insulation, electronic display, etc

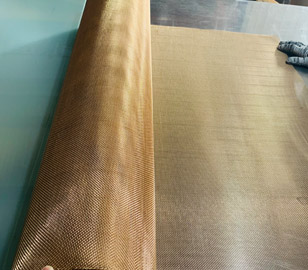

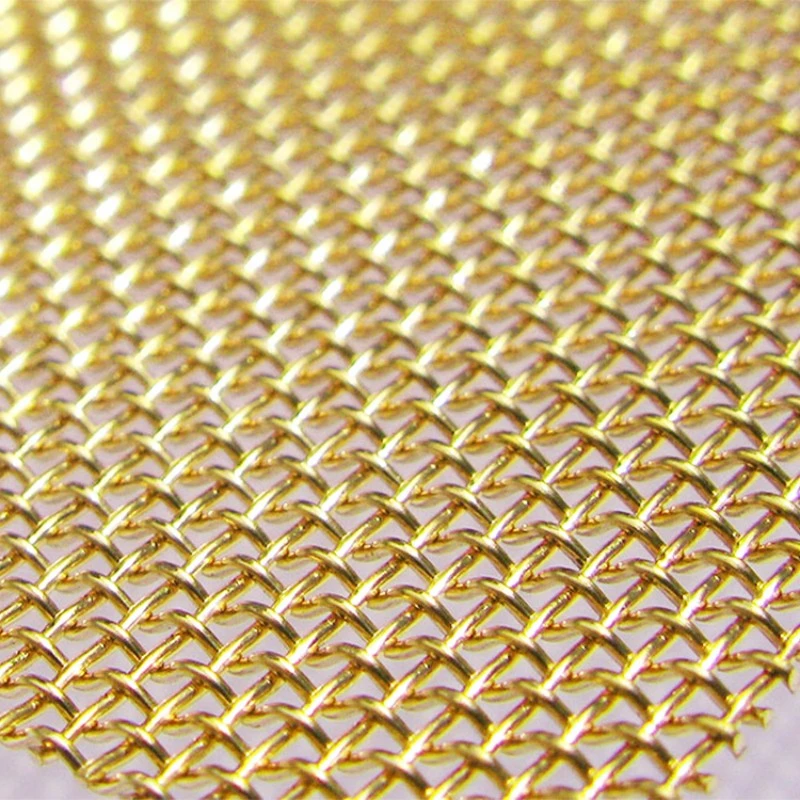

Brass Mesh

It is made of copper wires divided by warp and weft. The mesh is generally square. Used for sieving various particles, powder,porcelain clay and glass, porcelain printing, filtering liquid, gas, etc.

Product name: Brass wire mesh (alias: shielding mesh).
Material: brass wire
Features: non-magnetic, wear-resistant, and good ductility
Specification: 3 mesh / inch—200 mesh / inch
Weaving: plain weave, twill weave
Uses: Screen all kinds of particles, powder, porcelain clay, glass, porcelain printing, filter liquids and gases

Phosphorus copper mesh

Phosphorus copper mesh is also known as a raw material with excellent value characteristics. It is attributed to tin bronze mesh.It has the advantages of corrosion resistance, acid and alkali resistance, and strong wear resistance and ductility. It can generally be used in special filtration, impurity removal, and production. Together in some shielding, home wall blocking.

Product Name: Phosphor Copper Wire Mesh (Alias: Tin Bronze Mesh)
Material: phosphor copper wire (tin bronze wire)
Features: non-magnetic, wear-resistant, acid and alkali resistant, and good ductility
Specification: 8 mesh / inch--400 mesh / inch
Weaving: plain weave, twill weave
Uses: Screen all kinds of particles, powder, porcelain clay, glass, porcelain printing, filter liquids and gases

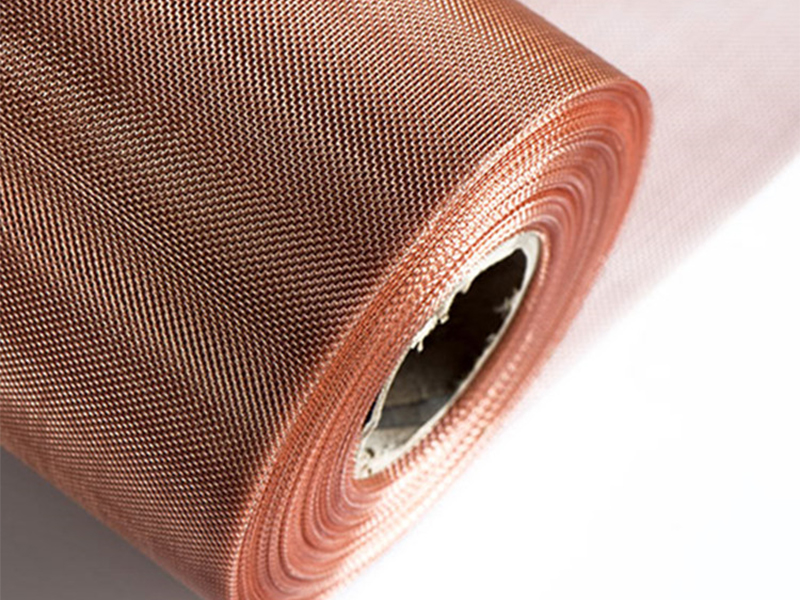

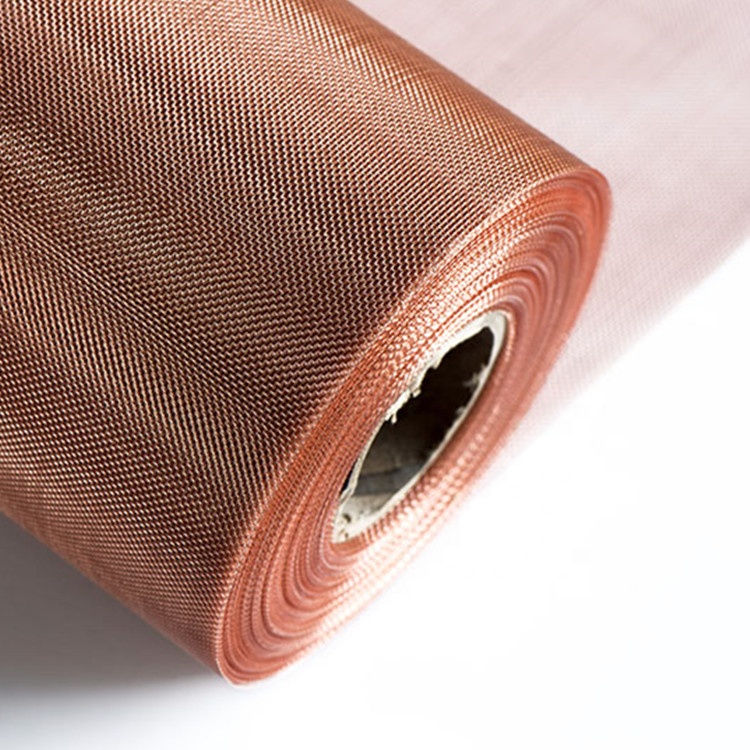

Red copper mesh

Red copper mesh is a kind of red copper wire, which is used for radiation protection of special facilities such as cable circuits,laboratories, and computer rooms. Anti-electromagnetic interference in electronic equipment, power sector, aerospace,information industry, military facilities, etc.

Product Name: Red copper mesh
Material: copper wire
Features: non-magnetic, wear-resistant, good sound insulation, and filtered electron beam
Specification: 5 mesh / inch-100 mesh / inch
Weaving: plain weave
Uses: wall sound insulation, electronic display, etc

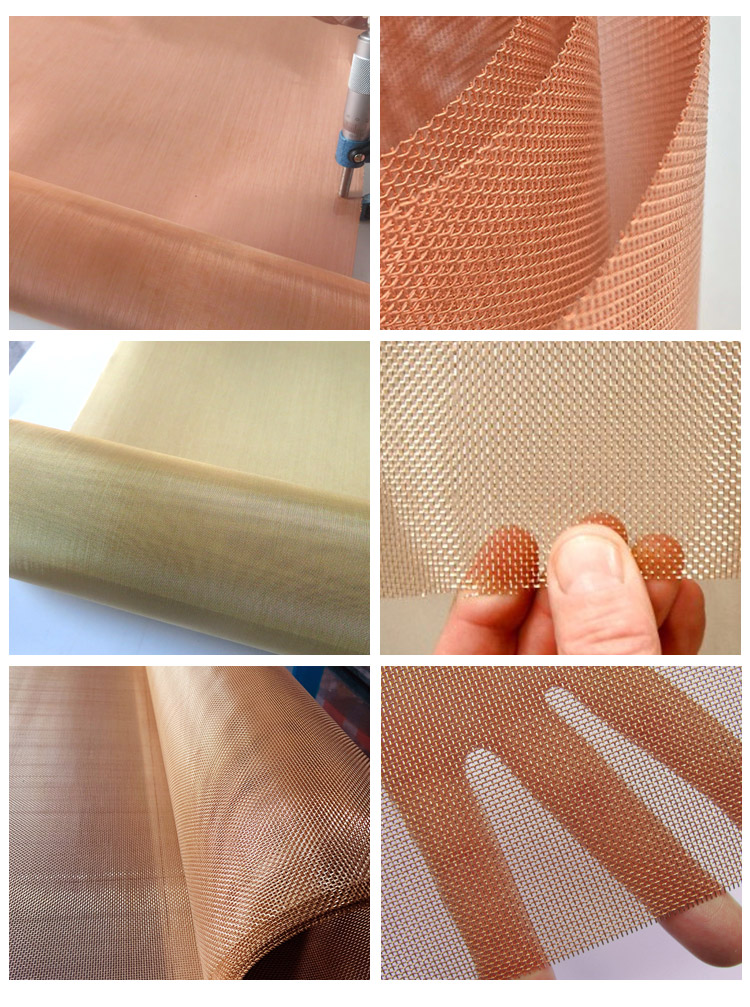

Details Images

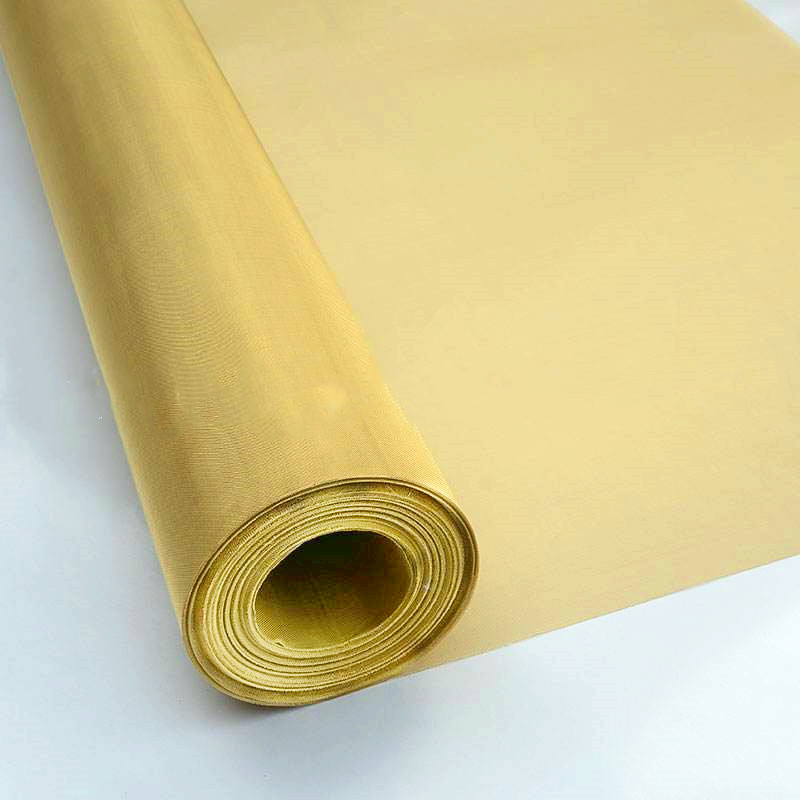

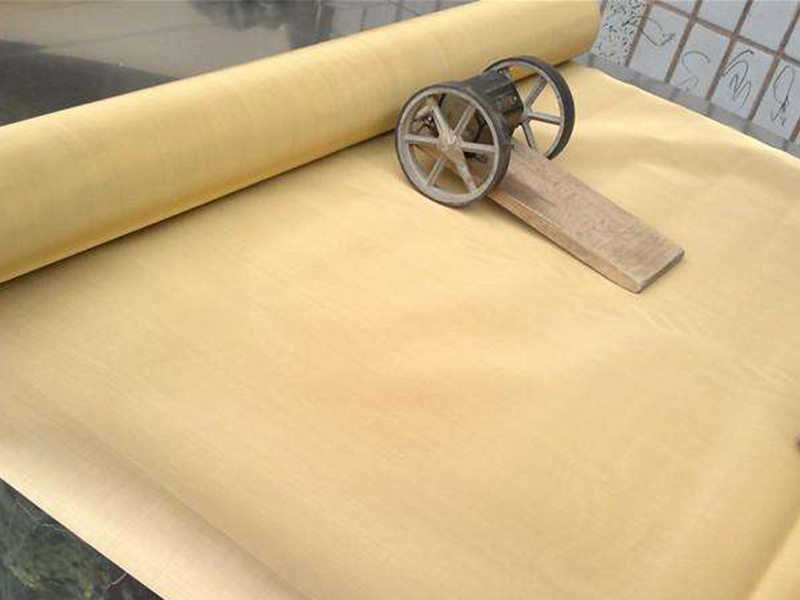

Copper Woven Wire Mesh

Products Specification

Copper wire mesh is also called red copper mesh. The purity of copper is 99.8%.The aperture of copper wire mesh can range from 2 meshes to 100 meshes, which can suit for different requirements Copper wire Specifications 0.914 m X30 m, 1 m X30 m, 1.22 m X 30 m.

Advantage:

Easily for installation and replacement ;Made of high quality stainless steel, suitable for various filtration scenarios;High strength through resistance to twisting, compressive, and tensile forces ;Special edge design,safe without burrs;Process drawings or samples according to customer's requirements;

Weaving Types

Plain Dutch Weave

Twill Weave

Plain Weave

Twill Dutch

Parameters and Specifications

Mesh/Inch	Wire Diameter(Inch)	Wire Diameter(MM)	Aperture(Inch)	Aperture(MM)	Open Area(%)	Weight(kg/Square meter)
1x1	0.08	2.03	0.92	23.37	92	2
2X2	0.063	1.6	0.437	11.1	87.4	2.5
3X3	0.054	1.37	0.279	7.09	83.8	2.7
4X4	0.047	1.19	0.203	5.16	81.2	2.7
5X5	0.041	1.04	0.159	4.04	79.5	2.6
10X10	0.025	0.64	0.075	1.91	74.9	2
12X12	0.02	0.508	0.063	1.6	75.9	1.5
14X14	0.02	0.508	0.051	1.3	71.9	1.8
16X16	0.018	0.457	0.0445	1.13	71.2	1.6
18X18	0.017	0.432	0.0386	0.98	69.4	1.6
20X20	0.02	0.24	0.03	0.76	76	0.56
20X20	0.016	0.33	0.034	0.86	72.2	1.1
30X30	0.012	0.305	0.0213	0.54	63.9	1.4
30X30	0.0094	0.24	0.0243	0.62	72.1	0.84
40X40	0.01	0.254	0.015	0.38	59.9	1.3
50X50	0.0055	0.14	0.0145	0.368	72.4	0.48
60X60	0.0047	0.12	0.012	0.303	71.6	0.42
60X60	0.0059	0.15	0.0107	0.273	64.5	0.65
80X80	0.0055	0.14	0.0069	0.117	45.5	0.76
100X100	0.0039	0.1	0.006	0.154	36.76	0.5
120X120	0.003	0.08	0.0052	0.132	38.7	0.384
150X150	0.0024	0.06	0.0043	0.11	64.7	0.26
150X150	0.0028	0.07	0.0039	0.1	58.8	0.38
165X165	0.0019	0.05	0.0041	0.104	67.5	0.2
180X180	0.0019	0.05	0.0035	0.091	64.5	0.22
180X180	0.0024	0.06	0.0031	0.081	57.4	0.32
200X200	0.0019	0.05	0.003	0.077	60.6	0.24
200X200	0.0024	0.06	0.0026	0.067	52.7	0.35
250X250	0.0016	0.04	0.0024	0.0616	60.6	0.2
270X270	0.0016	0.04	0.0021	0.054	57.4	0.21
300X300	0.0016	0.04	0.0018	0.045	53.5	0.23
325X325	0.0014	0.035	0.0017	0.0432	55.3	0.2
400X400	0.0012	0.03	0.0013	0.0335	52.7	0.18
500X500	0.0009	0.025	0.001	0.0258	50.7	0.15
500X500	0.0012	0.03	0.0008	0.0208	16.76	0.225
635X635	0.0007	0.018	0.0008	0.022	55	0.1

Copper wire mesh can be used as the sheilding screen in the cable circuits, laboratories and computer rooms. widely used in the power sector, aerospace, information industry and military for RFI and EMI shielding. Can be used as the faraday cage. can be installed onto buildings to insulate noise.can be made to filter discs for liquid,gas and solid filtering.
