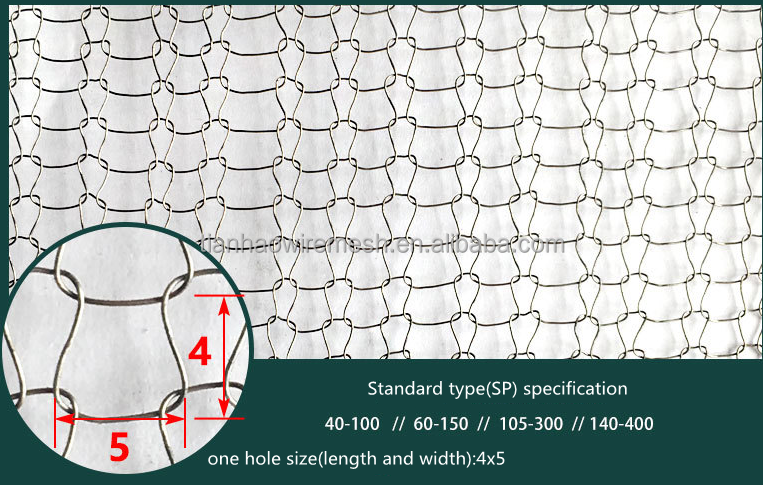

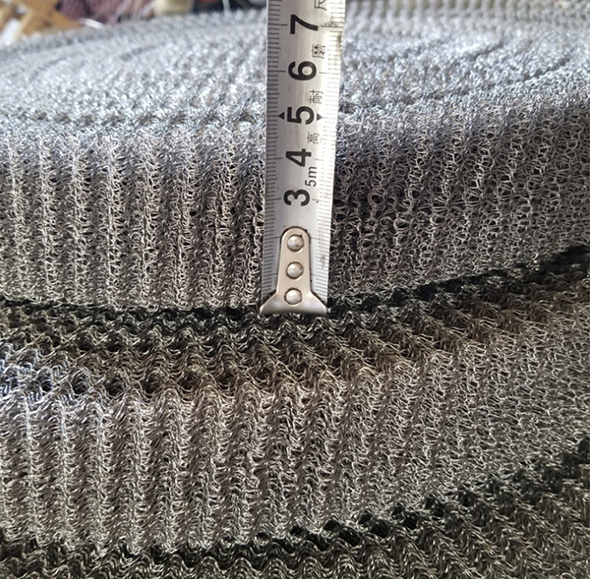

Set 40-100 as an example That is, a 100mm wide gas-liquid filter mesh knitted by 40 pieces or say a 100mm wide gas-liquid mesh with 40 holes.
Standard knitted filter mesh is a widely used model, 40-100,140-400 is more commonly used.
Scroll down to view more product specifications.
Product Introduction
|
Model
|
Specification(HG/T21618-1998)
|
Material
|
|
Standard Type(SP)
|
40-100/60-150/105-300/140-400/160-400/200-570
|
304,304L,316,316L,310S,321,2205
|
|

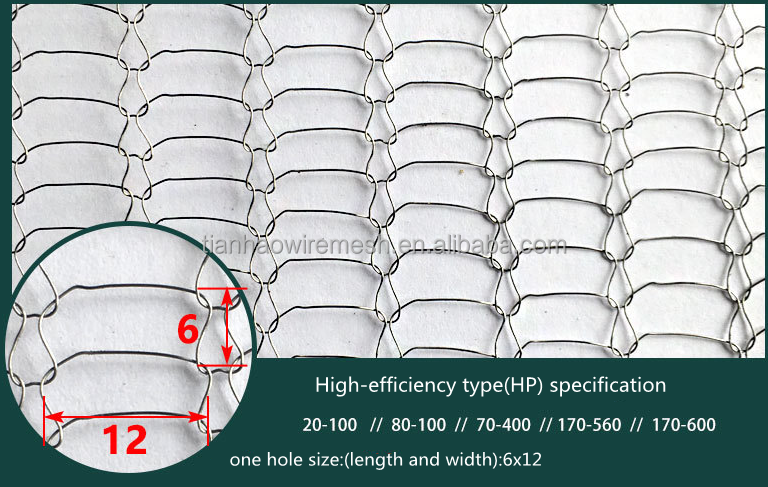

High-efficiency Type(DP)
|
60-100/80-100/80-150/90-150/150-300/200-400/300-600
|
304,304L,316,316L,310S,321,2205
|
|

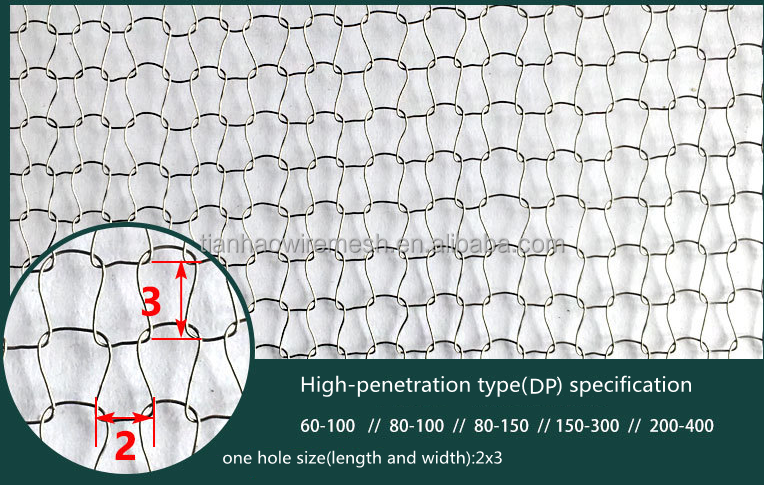

High-penetration Type(HP)
|
20-100/30-150/70-400/100-600/170-560
|
304,304L,316,316L,310S,321,2205
|
|
Damping type(HR)
|
33-30/38-40/20-40/26-40/30-40/30-50/48-50/30-60/30-80/50-120
|
304,304L,316,316L,310S,321,2205
|

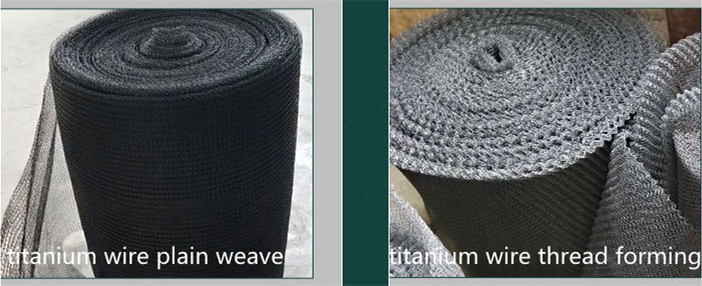

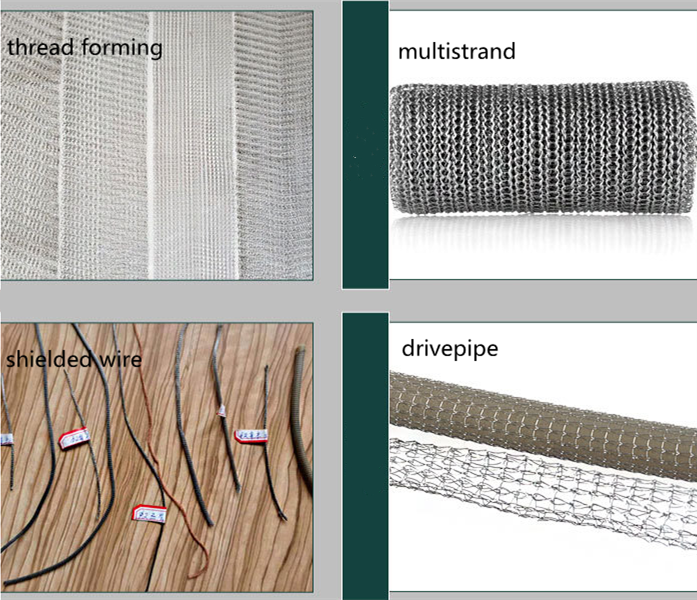

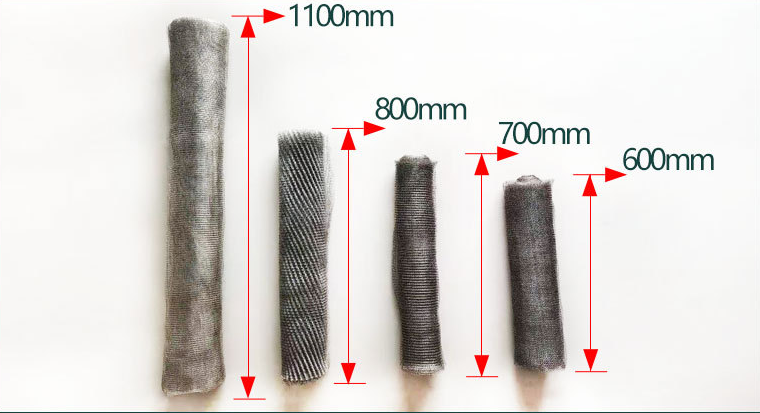

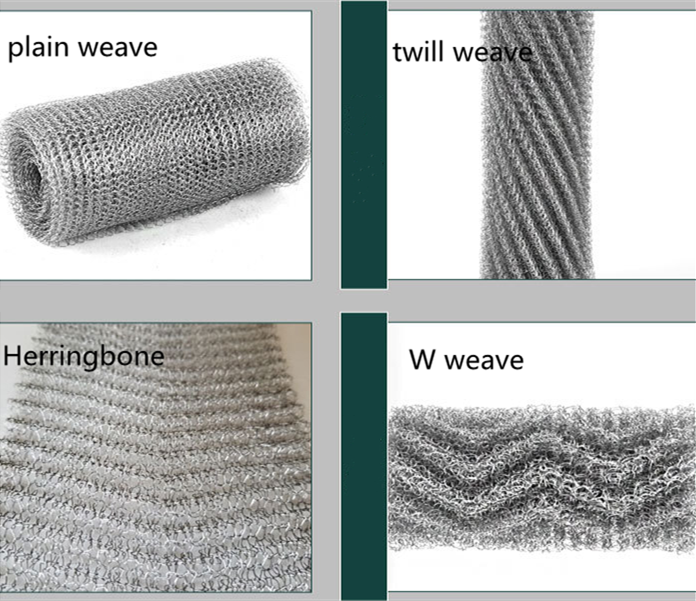

A variety of forms for you to choose

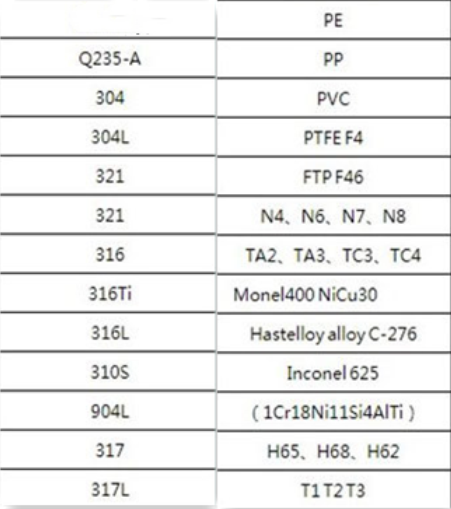

A variety of materials for your choice
The above materials can be mixed with glass fiber, PP,PE, fluorine plastic

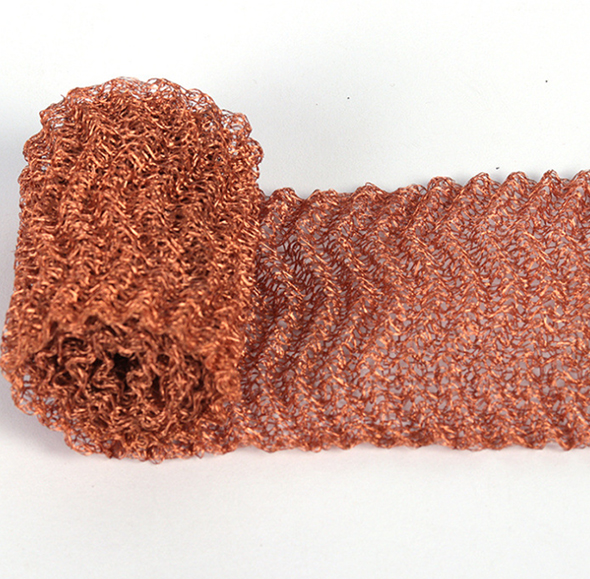

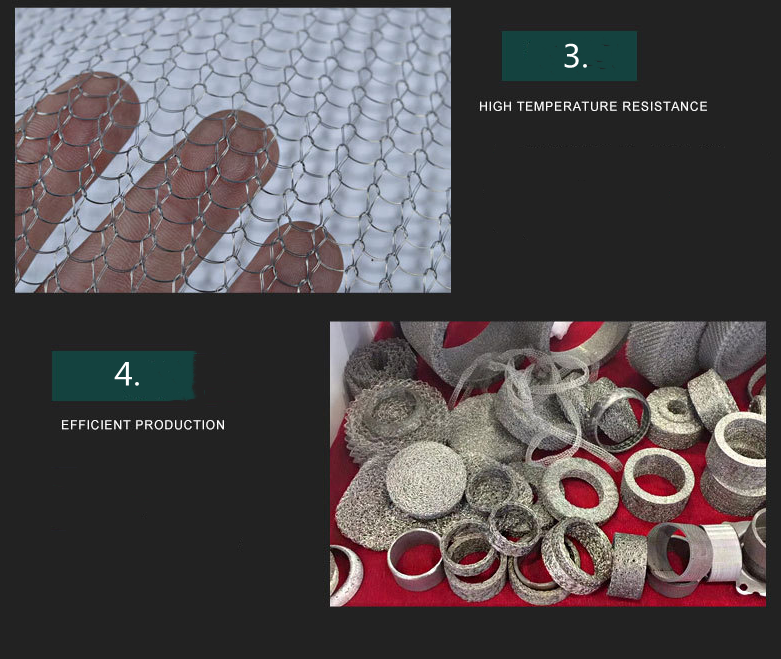

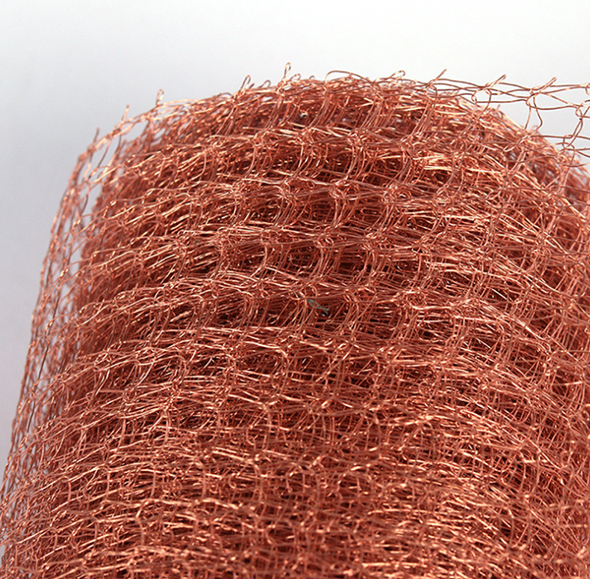

3.It has the characteristics of high temperature resistance, in which the melting point of copper is 1083℃, with flame retardant, appropriate tensile resistance and elongation.
4.Made into sealing, shock absorbers (shock absorbers), muffler and exhaust purification components in automotive components
Need Help To Choose?
If you need to customize various metal mesh sheets and related deep-processed filter nets, please contact us to obtain detailed consultation information about the delivery time and price of reusable metal filter elements.
