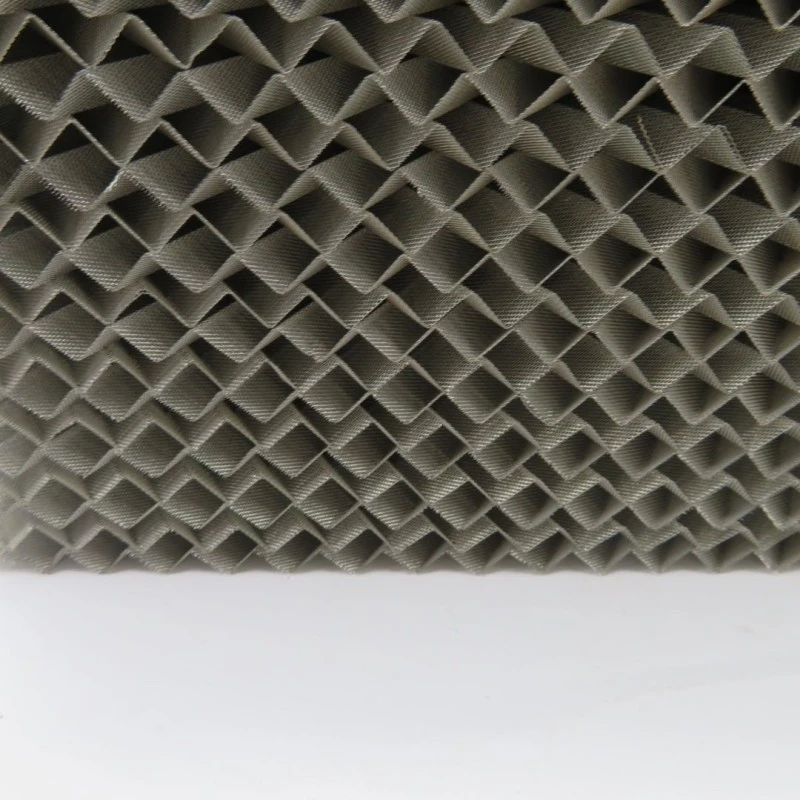

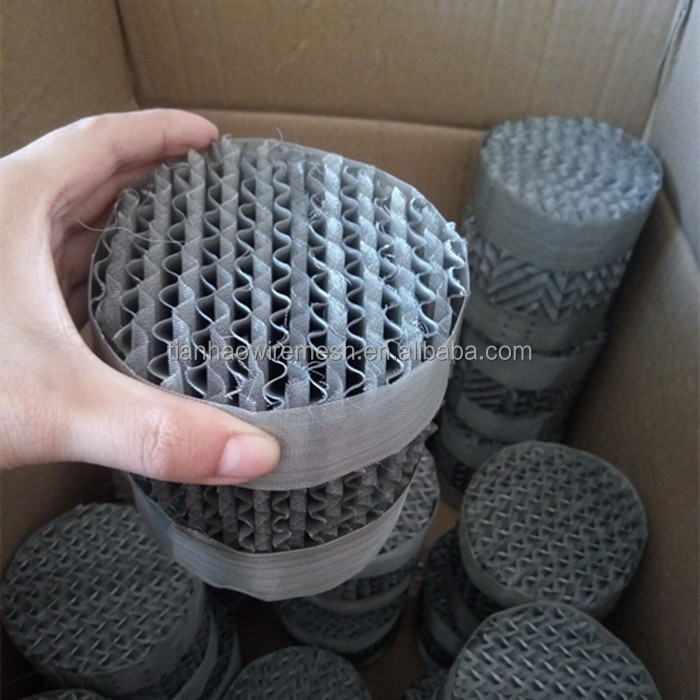

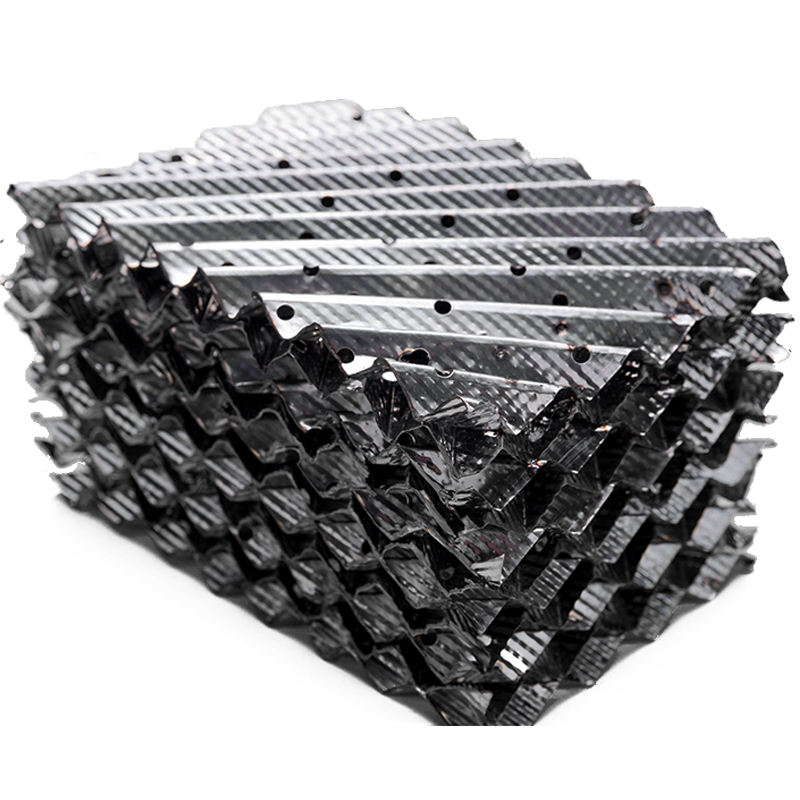

Metal wire gauze packing is which made by carbon steel, stainless steel or aluminum alloy materials.Due to the special produce technology,wire gauze packing have the advantages of thin thickness,big surface area,big free volume,so less resistance,high separation efficiency,big disposal performance.so it is especially suitable for vacuum rectification and precision rectification.
Scroll down to view more product specifications.
Product Introduction
|
Model
|
Specific surface(m2/m3) | Bulk density(kg/m3) | Void ratio | Obi.angle | P(Pa/plate) | Theo.plate(piece/m) |
| 250(AX) | 250 | 125 | 95 | 300 | 100-400 | 2.5-3 |
|
500(BX)
|
500 | 250 | 90 | 300 | 400 | 4-5 |
| 700(CY) | 700 | 350 | 85 | 450 | 600-700 | 8-10 |
Material:Stainless steels,304,316,316L,Carbon steels. Aluminium,copper bronze etc.Further materials available on request.
250(AX):Precision rectification for high productive capacity and less theoretical plate number.
500(BX):Vacuum rectification for thermally sensitive system and hard separation system,especially suitable for rectification with pressure lower than 7Kpa.
700(CX):Separation of isotopic compound and isomeric compound.
1.Large specific surface area,high void ratio and light;
2.Obliquity of gas passage is small and regular,so pressure drop is low;
3.Minimum holdup characteristics.4.Good radial diffusion and sufficient gas contact.
