Heating Resistance Metal Alloy Fireproof Screen FeCrAl Woven Wire Mesh for Furnace

Scroll down to view more product specifications.

Product Introduction

30 40 50 60 Mesh Heating Resistance Metal Alloy Fireproof Screen FeCrAl Woven Wire Mesh for Furnace

Specification

Product Name	Heat Resistance 20 30 40 50 100 200 Mesh Fecral Wire Woven Mesh Screen
Material	1Cr13Al4， 0Cr23Al5， 0Cr25Al5
Mesh Counts	2-200 mesh
Wire Diameter	0.02-2 mm and can be customized

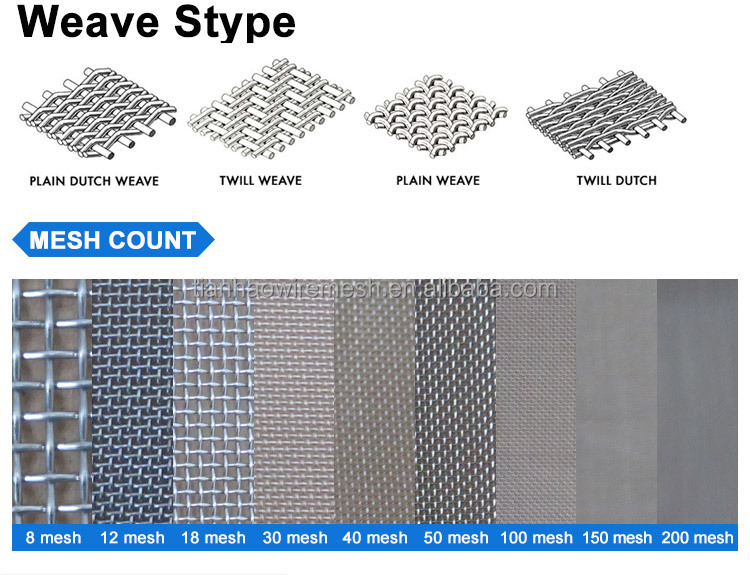

Weave Type	Plain weave, dutch weave, twill weave, crimped
Features	* Heating resistance. * Oxidation resistance. * Sulfur resistance. * Anti-carburizing. * High surface load. * Long lasting and durable. * Low temperature coefficient of resistance.
Max Working Temperature	* 1Cr13Al4 - 950 ℃ * 1Cr21Al4 - 1100 ℃ * 0Cr21Al6 - 1250 ℃ * 0Cr23Al5 - 1250 ℃ * 0Cr25Al5 - 1250 ℃ * 0Cr21Al6Nb - 1350 ℃ * 0Cr27Al7Mo2 - 1400 ℃

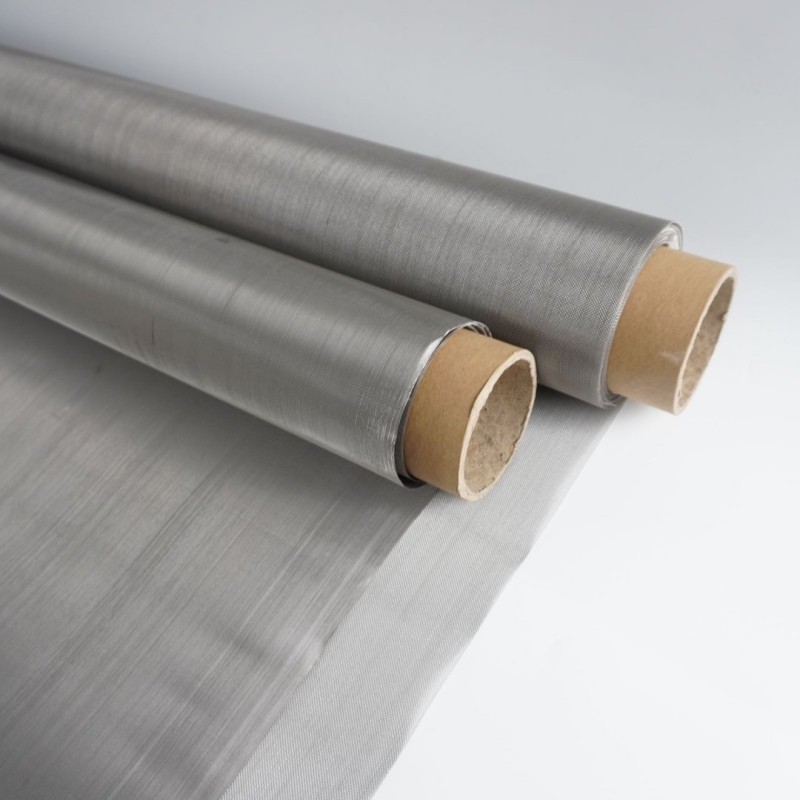

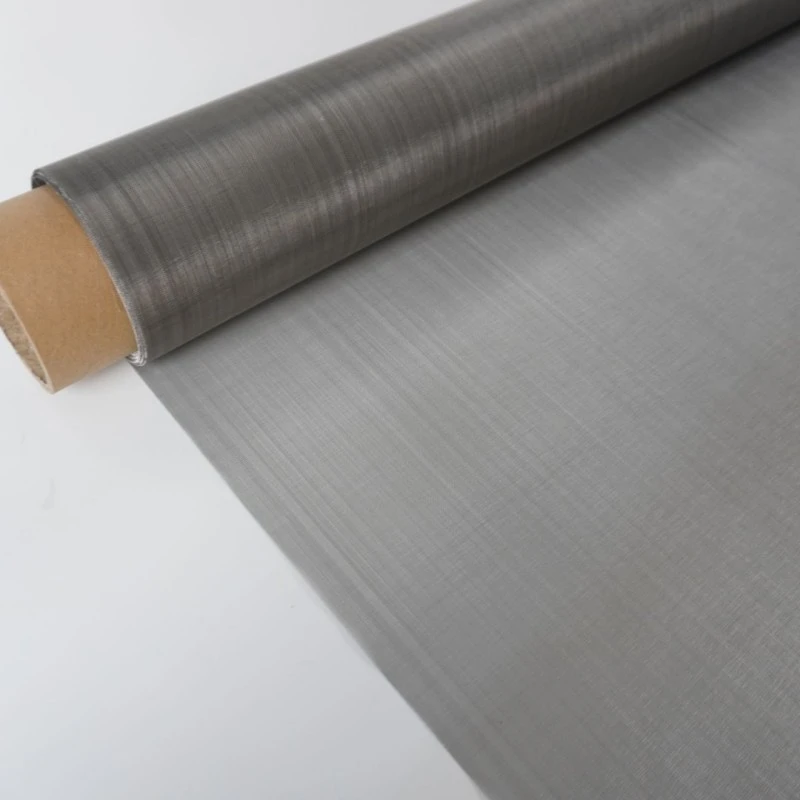

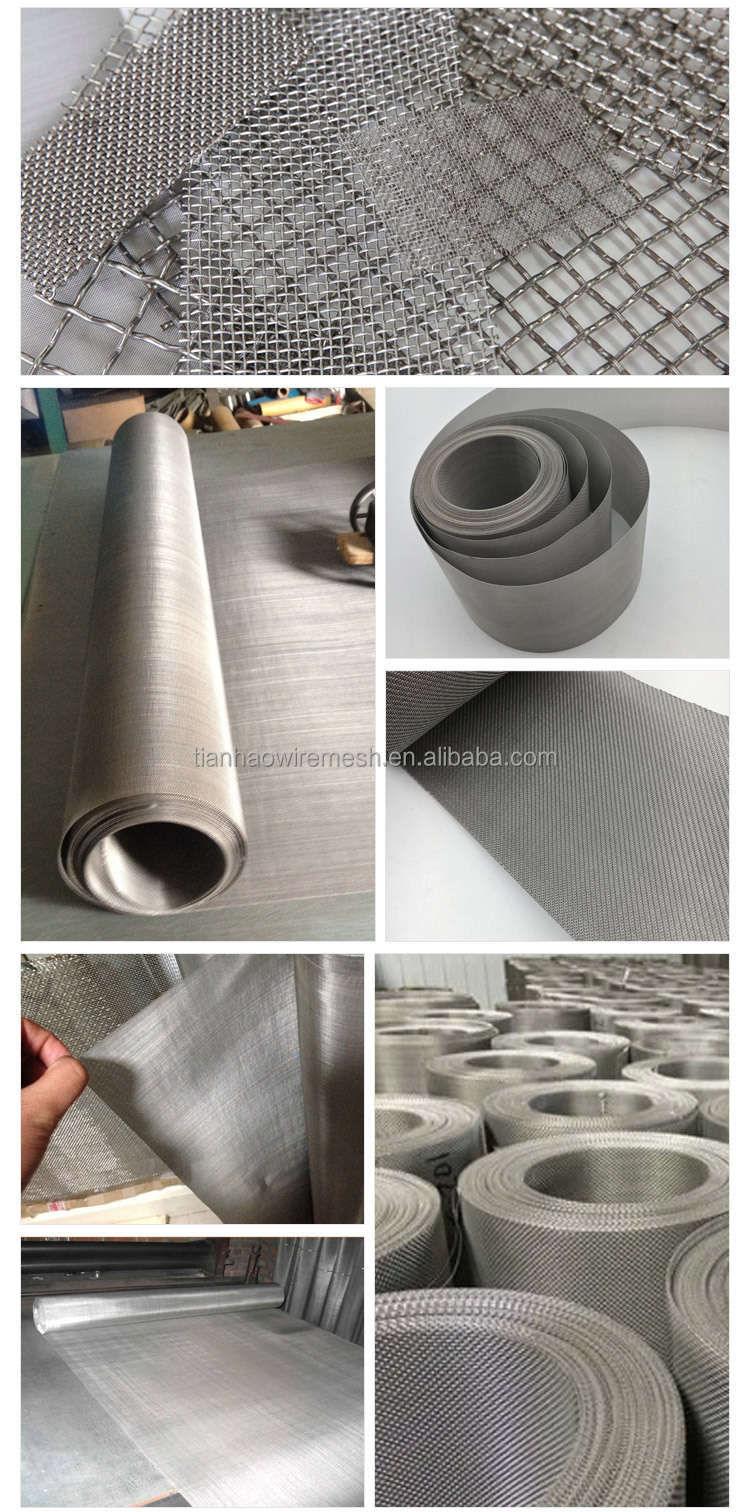

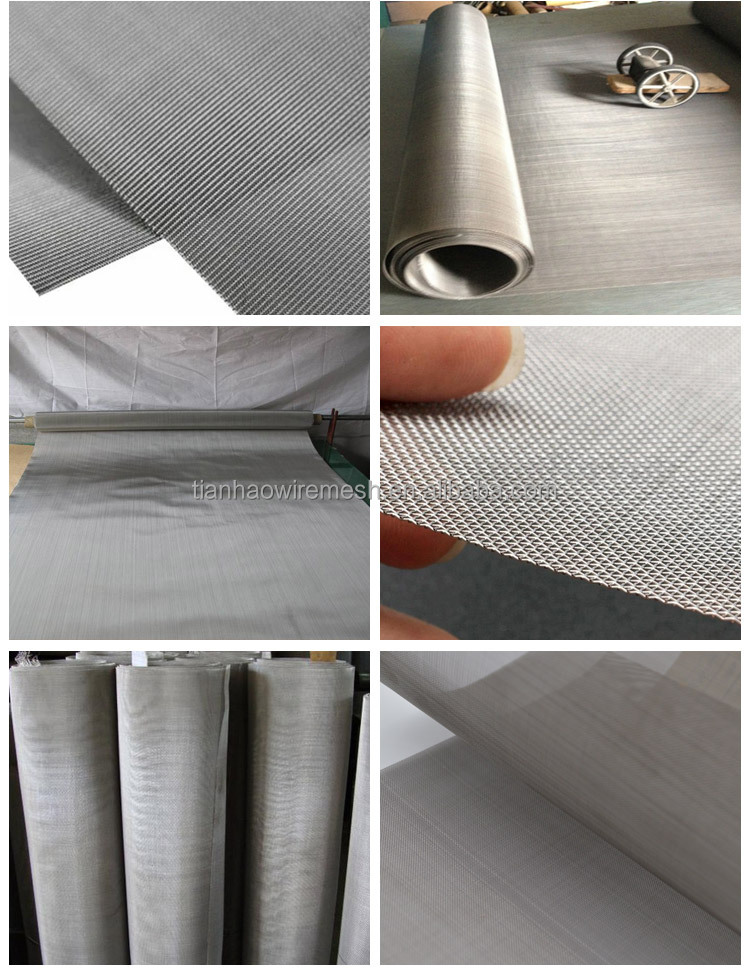

Products Details

30 40 50 60 Mesh Heating Resistance Metal Alloy Fireproof Screen FeCrAl Woven Wire Mesh for Furnace

Applications

* The FeCrAl woven wire mesh is mainly used as the drying and heating equipment in metallurgy, colliery, dyeing, food factory, hospital, high density board factory and cardboard.

* The FeCrAl woven wire mesh is an ideal heating resistance material in the industry electric furnace, household appliances, gas burners and infrared device.

* There are still FeCrAl expanded heaters and FeCrAl perforated heaters.

* FeCrAl is also used in these place: Gas burners, Catalysts, Electronic engineering, Heat processing, E-cigarette atomizers, Furnace curtains, Furnace Filters

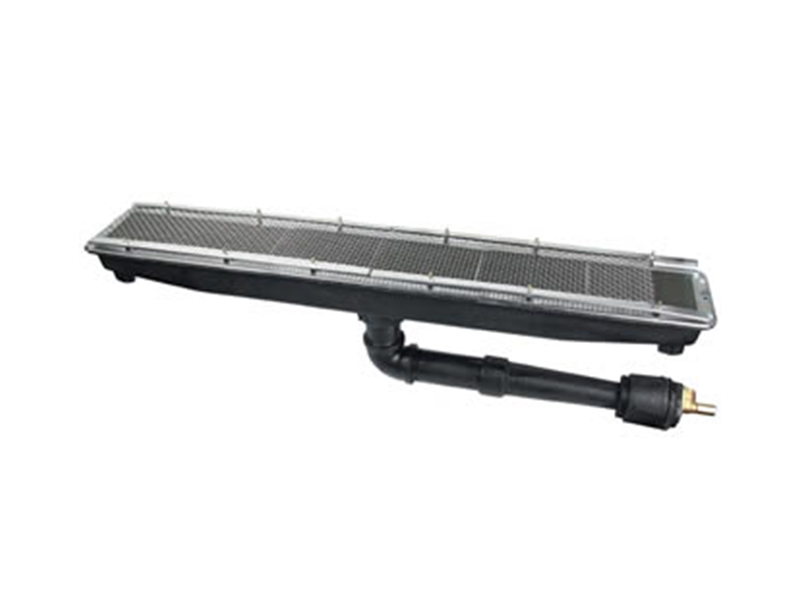

FeCrAl woven wire

used in infrared burner

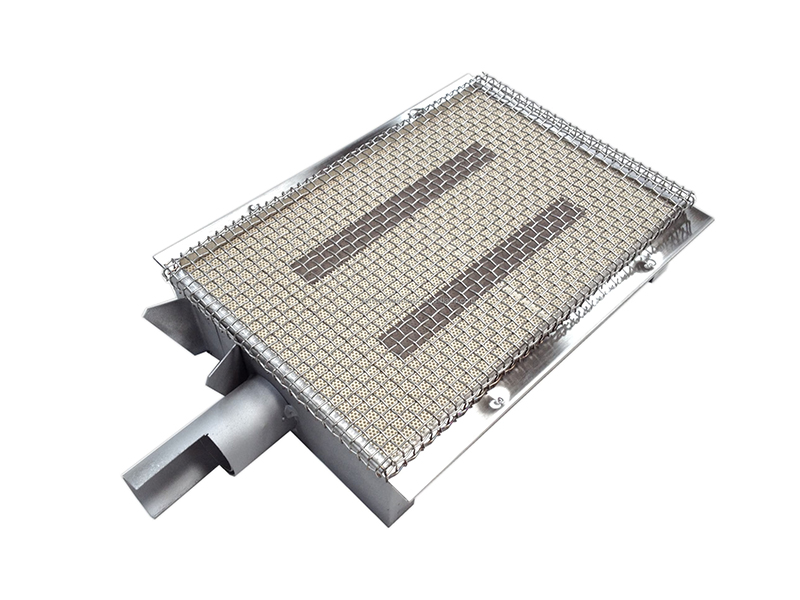

FeCrAl woven wire

used in the gas burner

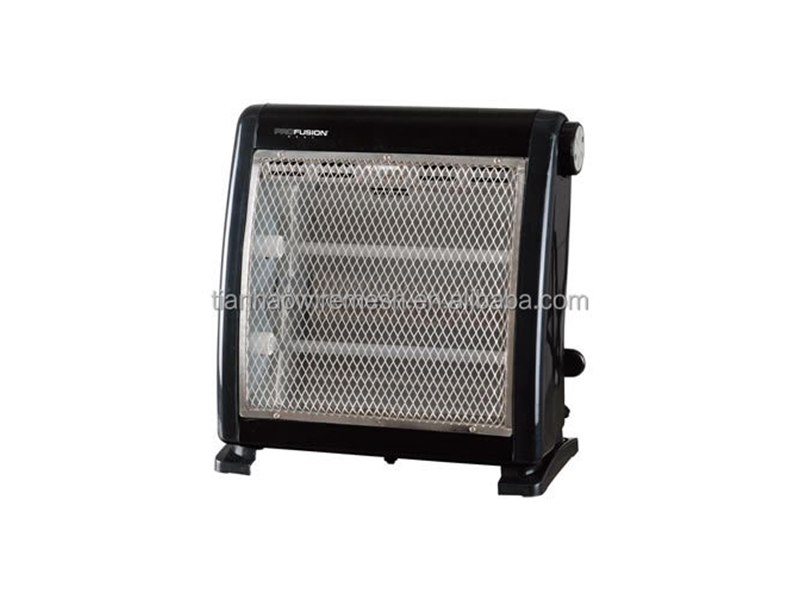

FeCrAl expanded metal

mesh used in the

household heater

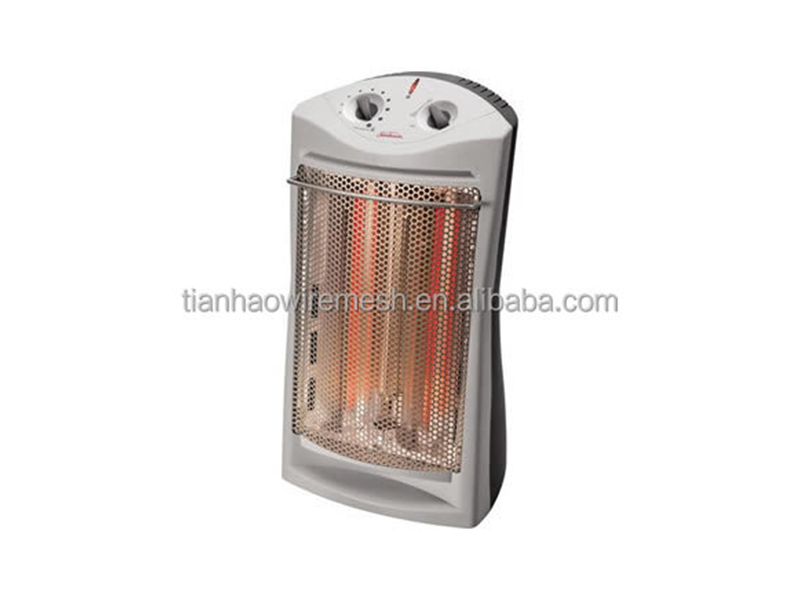

FeCrAl perforated metal

mesh used in the

household heater

Specification Form

FeCrAl Wire Mesh

Mesh	Wire Diameter (mm)	Aperture (mm)
2	1.80	10.90
3	1.60	6.866
4	1.20	5.15
5	0.91	4.17
6	0.80	3.433
8	0.60	2.575
10	0.55	1.990
12	0.50	1.616
14	0.45	1.362
16	0.40	1.188
18	0.35	1.060
20	0.30	0.970
26	0.28	0.696
30	0.25	0.596
60	0.15	0.273
70	0.14	0.223
80	0.12	0.198
90	0.11	0.172
100	0.10	0.154
120	0.08	0.132
140	0.07	0.111
150	0.065	0.104
160	0.065	0.094
180	0.053	0.088
200	0.053	0.074

30 40 50 60 Mesh Heating Resistance Metal Alloy Fireproof Screen FeCrAl Woven Wire Mesh for Furnace
